Introduction

The modern data warehouse is no longer confined to on-premises hardware. Today’s successful analytics architecture separates storage from compute, scales elastically, and integrates AI-driven insights seamlessly. Organizations migrating to cloud-native data warehouse platforms report 65% faster query performance and 40% lower total cost of ownership compared to traditional systems.​

Whether you’re building your first analytics platform or modernizing legacy infrastructure, understanding data warehouse architecture design patterns is critical. This guide explores cloud-native architectures (Snowflake, BigQuery, Redshift), design principles, and best practices that power analytics at petabyte scale.

What is Modern Data Warehouse Architecture?

Modern data warehouse architecture is a cloud-native system that separates storage from compute, enabling independent scaling of both resources. Unlike traditional systems where storage and processing power are tightly coupled, cloud architectures provide flexibility, cost efficiency, and performance at massive scale.​

Why Architecture Matters

Poor architecture decisions create technical debt that compounds over years:

• ❌ Rigid systems that can’t scale with data growth
• ❌ Complex queries that timeout under load
• ❌ High operational overhead and maintenance costs
• ❌ Limited ability to integrate emerging tools (AI/ML)

Good architecture enables:

• ✅ Queries completing in seconds on petabyte-scale data
• ✅ Automatic scaling without manual intervention
• ✅ Predictable, transparent costs
• ✅ Seamless integration with modern analytics tools

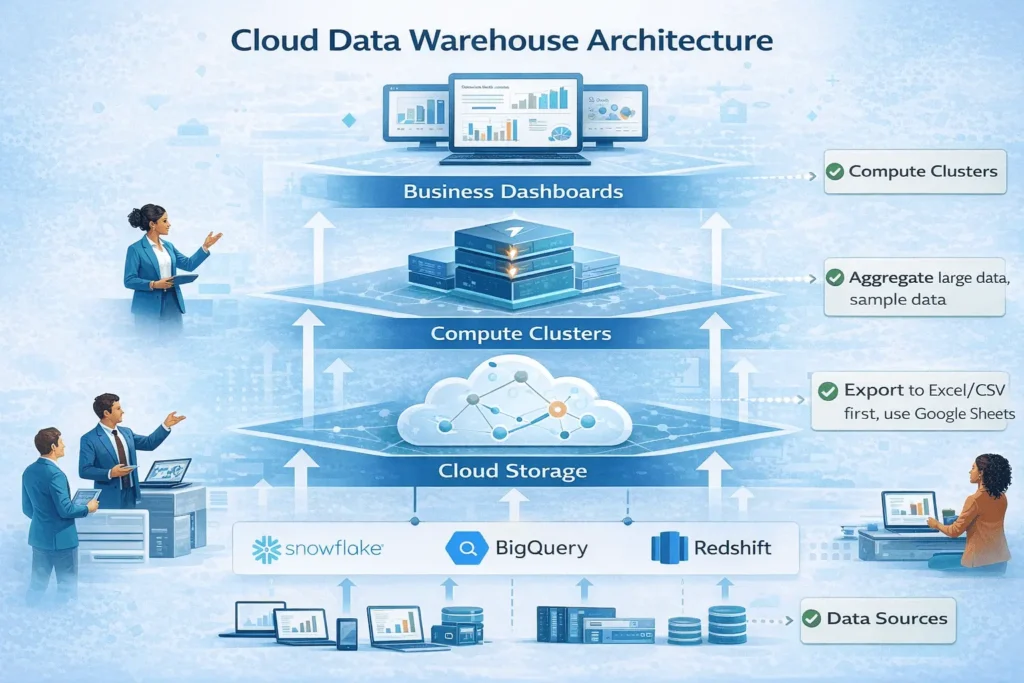

Key Architecture Components

Every modern data warehouse includes these essential layers:

Key Evolution: From On-Premises to Cloud-Native

The Three Generations of Data Warehousing

Generation 1: Traditional On-Premises (2000s-2010s)

• Fixed hardware capacity (servers in your data center)
• Scaling required weeks of procurement
• High upfront capital costs
• Manual maintenance and updates
• Example: Teradata, Oracle Data Warehouse

Generation 2: Hybrid (2010s-2015)

• Some workloads moved to cloud
• Kept sensitive data on-premises
• Complex data movement between systems
• Increasing operational complexity
• Example: Exasol, legacy systems + AWS

Generation 3: Cloud-Native (2015-Present)

• 100% cloud-hosted, fully managed
• Elastic scaling in seconds/minutes
• Pay-as-you-go pricing
• Native AI/ML integration
• Example: Snowflake, BigQuery, Redshift

The Business Impact

Organizations adopting cloud-native architectures experience:

• 78% improvement in data accessibility
• 42% reduction in operational costs (year 1)
• 65% faster query processing times
• 71% improvement in data processing capabilities

“Migrating to cloud-native architecture wasn’t just a technical upgrade—it transformed how our entire organization makes decisions. We went from monthly reports to real-time dashboards, all while cutting infrastructure costs by 40%.”—Enterprise Data Lead, Fortune 500

Core Architecture Layers Explained

Layer 1: Data Ingestion

The first layer collects data from operational systems, sensors, third-party APIs, and logs.

Ingestion patterns:

• Batch ingestion – Collect data periodically (daily, hourly)
• Streaming ingestion – Real-time data flow with sub-second latency
• Change Data Capture (CDC) – Capture only changed records for efficiency
• File uploads – Direct CSV/Parquet file imports

Best practice: Use ELT (Extract, Load, Transform) instead of ETL. Load raw data first, transform in the warehouse where compute is cheaper and faster.

Layer 2: Storage Layer

Cloud-native platforms decouple storage from compute, enabling independent scaling.

Storage characteristics:

• Object Storage – S3 (AWS), GCS (Google), Blob Storage (Azure)
• Columnar Format – Parquet, ORC for analytics-optimized access
• Tiered Storage – Hot (frequent access), Cold (archival), Frozen (compliance)
• Compression – 10:1 compression ratios reduce costs

Cost optimization: Implement data tiering to move infrequently accessed data to cheaper storage tiers.

Layer 3: Compute Layer

Separate compute clusters process queries at massive scale.

Compute features:

• Multi-cluster Architecture – Multiple compute nodes run queries in parallel
• Auto-scaling – Add/remove nodes based on demand
• Query Prioritization – Assign resources based on business criticality
• Workload Isolation – Separate compute for ETL, BI, Data Science to prevent interference

Example: Snowflake’s Multi-Cluster Shared Data Architecture allows infinite scaling while sharing one copy of data.

Layer 4: Query Engine

The MPP (Massively Parallel Processing) engine distributes queries across compute nodes.

How it works:

1. Query received → 2. Optimizer determines best execution plan → 3. Distribute work to nodes → 4. Nodes process in parallel → 5. Results merged → 6. Return to user

Modern engines optimize for:

• Micro-partitioning – Auto-partition large tables for faster pruning
• Vectorized Processing – Process multiple rows in one CPU operation
• Predicate Pushdown – Filter data before it reaches compute
• Result Caching – Return identical queries instantly from cache

Three-Tier Architecture Model

The three-tier architecture is the most common pattern for enterprise data warehouses.

Tier 1: Data Source Layer

What it contains: Operational systems, databases, APIs, log streams

Responsibility: Generate and capture raw business data

Tier 2: Staging/Integration Layer

What it contains: Raw data zone, transformation logic, cleansing rules

Responsibility:

• Land raw data (minimal processing)
• Apply quality checks
• Run transformation pipelines (ELT)
• Create standardized entities

Key benefit: Separates raw data from cleaned data, enabling rollback and auditing.

Tier 3: Analytics/Business Layer

What it contains:

• Conformed dimensions (customers, products, dates)
• Fact tables (transactions, events)
• Aggregated data marts
• Published datasets for BI tools

Responsibility: Serve business users and data scientists with clean, performant data

Data Flow Through Tiers

Operational Systems
    ↓ (Extract)
Source Systems
    ↓ (Load)
Staging/Raw Zone (Landing Layer)
    ↓ (Transform, Cleanse, Validate)
Transformation Layer
    ↓ (Aggregate, Conform)
Analytics Layer (Facts & Dimensions)
    ↓ (Query, Visualize, Model)
BI Tools, Dashboards, Data Science

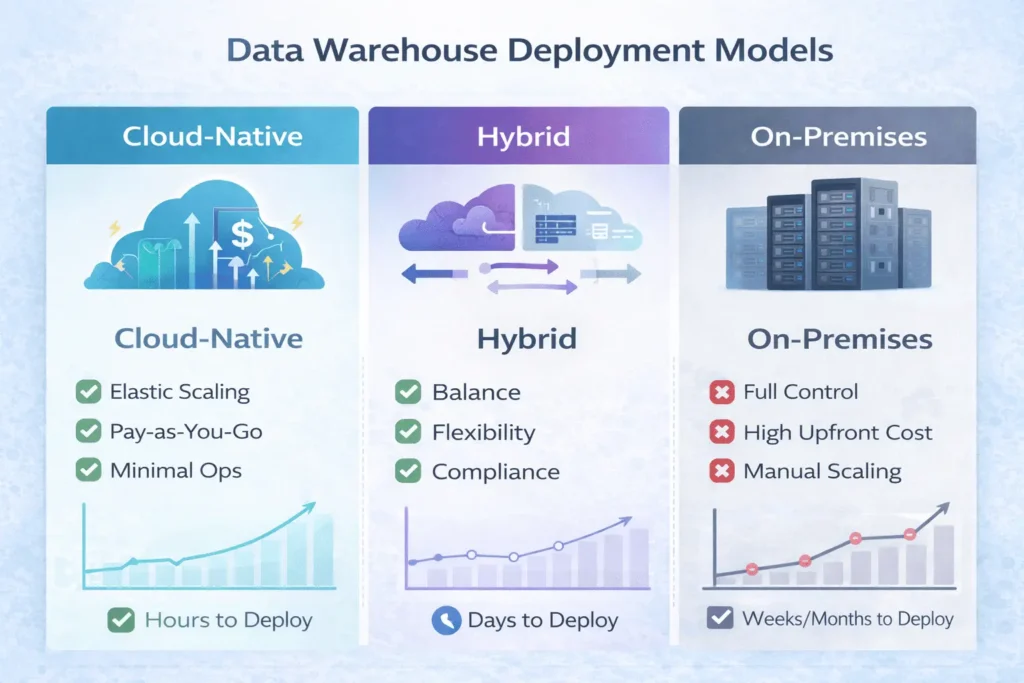

Cloud-Native vs Hybrid vs On-Premises

Detailed Comparison

When to Choose Each

Choose Cloud-Native if:

• You prioritize speed and cost efficiency
• Your data is public or non-regulated
• You want minimal infrastructure management
• You need global scalability

Choose Hybrid if:

• You have strict data residency requirements
• You’re migrating from on-premises gradually
• Some data must stay local for compliance
• You want flexibility between environments

Choose On-Premises if:

• Your data requires complete air-gapped isolation
• Compliance mandates prohibit cloud
• You have extreme performance requirements
• You need maximum control over infrastructure

Top Platforms: Snowflake vs BigQuery vs Redshift

Snowflake: The Multi-Cluster Standard

Architecture:

• Compute-Storage Separation – Scale each independently
• Multi-Cluster Shared Data – All clusters access the same data
• Cross-Cloud Support – Run on AWS, Azure, GCP from one interface

Strengths:

• ✅ Fastest scaling (seconds, not minutes)
• ✅ Zero-copy cloning (full database snapshots instantly)
• ✅ Cross-cloud flexibility
• ✅ Excellent for unpredictable workloads

Ideal for: Organizations with variable workloads, multiple cloud preferences, need for rapid scaling

Pricing: Per-second compute + storage (no wasted resources with auto-suspend)

Google BigQuery: The Serverless Powerhouse

Architecture:

• Fully Serverless – No cluster provisioning
• Nested Data Types – Native JSON, STRUCT, ARRAY support
• Deep Google Integration – Analytics Hub, Vertex AI, Looker

Strengths:

• ✅ Automatic scaling for massive parallelism
• ✅ Best-in-class real-time analytics
• ✅ Native ML integration (Vertex AI)
• ✅ Simplest operational model

Ideal for: Analytics-heavy workloads, real-time dashboards, organizations already in Google ecosystem

Pricing: Per-query (data scanned) or annual slots (fixed cost)

Amazon Redshift: The AWS-Native Choice

Architecture:

• RA3 Nodes – Managed storage with flexible compute
• Redshift Spectrum – Query directly on S3
• Tight AWS Integration – IAM, Glue, Kinesis, Lake Formation

Strengths:

• ✅ Deep AWS ecosystem integration
• ✅ Excellent for batch-heavy workloads
• ✅ Cost-effective for predictable workloads
• ✅ Strong historical performance track record

Ideal for: AWS-committed organizations, batch-heavy ETL, mature enterprises

Pricing: Per-node (RA3) or on-demand Serverless RPU consumption

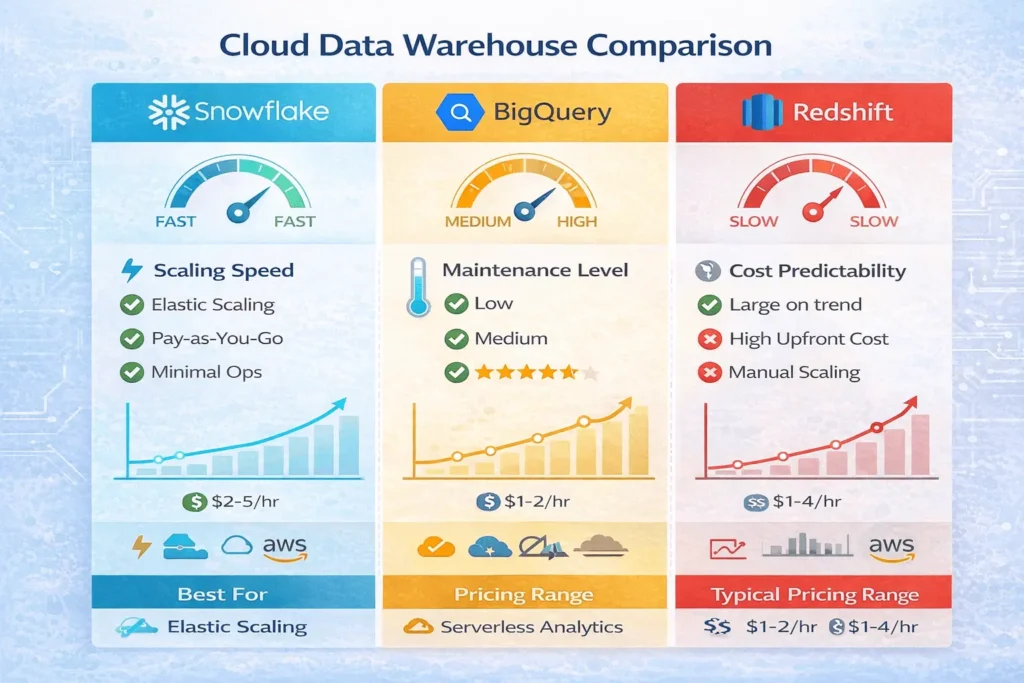

Quick Comparison Table

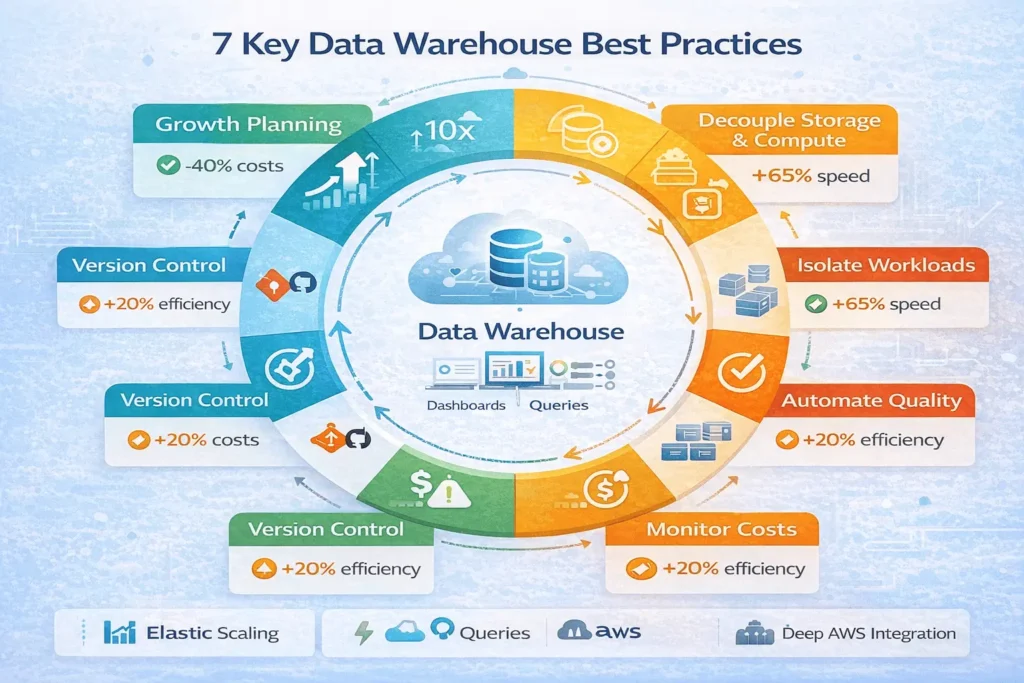

Best Practices for Scalable Data Warehouses

1. Plan for Growth from Day One

Mistake: Building for current data volume only

Practice: Design schemas assuming 10x data growth

• Use partitioning for large fact tables
• Implement clustering keys on frequently filtered columns
• Separate hot (active) from cold (archived) data

2. Decouple Storage and Compute

Mistake: Bundling storage with compute (leads to waste)

Practice: Use cloud-native platforms that scale independently

• Store data in object storage (cheap, durable)
• Spin up compute only when needed
• Archive old data to cheaper tiers

Cost impact: 40-60% reduction in warehouse costs

3. Implement ELT, Not ETL

Mistake: Transforming data outside the warehouse (slow, expensive)

Practice: Load raw data first, transform in-warehouse

4. Automate Data Quality Checks

Mistake: Discovering data issues after loading

Practice: Build quality gates into pipelines

Load → Validate → Check → Alert → Remediate → Publish

What to monitor:

• Null value rates (should be stable)
• Volume anomalies (sudden drops/spikes)
• Schema mismatches (column type changes)
• Duplicate records

5. Isolate Workloads with Separate Compute

Mistake: Running ETL and BI queries on same cluster

Practice: Use dedicated compute for each workload type

Benefit: ETL slowdowns won’t impact dashboards

6. Monitor Costs Obsessively

Mistake: Assuming cloud saves money (without monitoring)

Practice: Implement cost tracking and alerts

Cost optimization tactics:

• Auto-suspend idle compute (saves 50%+)
• Schedule heavy workloads during off-peak hours
• Archive rarely-accessed data
• Use result caching for repeated queries

7. Version Control All Data Pipelines

Mistake: Code changes made directly in production

Practice: Treat infrastructure as code (IaC)

Git → Code Review → Test → Deploy → Production

Tools: dbt (data build tool), Terraform, GitHub Actions

How-To: Building Your First Data Warehouse

Prerequisites

• Basic SQL knowledge
• Cloud account (AWS, GCP, or Azure)
• Understanding of your data sources

Step 1: Define Your Architecture (Days 1-3)

Decisions to make:

1. Platform choice: Snowflake, BigQuery, or Redshift?
2. Deployment model: Cloud-native or hybrid?
3. Data sources: Which systems will feed the warehouse?
4. Access patterns: Real-time dashboards or batch reporting?

Recommendation for starters: Begin with BigQuery or Snowflake (simpler operational model than Redshift)

Step 2: Design Your Data Model (Days 3-5)

Approach:

1. List key business entities: Customers, Products, Orders, Transactions
2. Identify metrics: Revenue, costs, count, duration
3. Choose schema pattern: Star schema (most common) or snowflake schema

Example: E-commerce warehouse

Fact Table (Orders):
- order_id (PK)
- customer_id (FK)
- product_id (FK)
- date_id (FK)
- quantity, amount, discount

Dimension Tables:
- customers (name, email, country)
- products (name, category, price)
- dates (date, month, quarter, year)

Step 3: Set Up Cloud Infrastructure (Days 5-7)

For Snowflake:

1. Create Snowflake account
2. Set up warehouse (compute cluster)
3. Create database and schema
4. Configure network access

For BigQuery:

1. Create Google Cloud project
2. Enable BigQuery API
3. Create dataset
4. Configure IAM roles

For Redshift:

1. Create AWS Redshift cluster
2. Configure security groups
3. Set up IAM roles
4. Test connectivity

Step 4: Build Data Pipelines (Days 7-14)

Simple pipeline example:

      Source Database → Extract → Snowpipe/Fivetran → Raw Layer
                               ↓
                    Transform with dbt
                               ↓
                  Analytics Layer (clean data)
                               ↓
                 Load into BI tool (Tableau/Looker)

Use tools:

• Ingestion: Fivetran, Stitch, Apache Airflow
• Transformation: dbt, SQL scripts
• Orchestration: Airflow, Prefect, Dagster

Step 5: Create Business Metrics (Week 3-4)

Define key metrics for your business:

• Revenue (daily, weekly, monthly)
• Customer acquisition cost (CAC)
• Customer lifetime value (LTV)
• Churn rate
• Operational efficiency metrics

Build: Create SQL queries and aggregation tables for each metric

Step 6: Connect BI Tools (Week 4)

Connect your data warehouse to visualization tools:

• Tableau → Snowflake connector
• Looker → BigQuery native integration
• Power BI → Redshift connector

Test: Verify dashboards pull live data from warehouse

Step 7: Monitor & Optimize (Ongoing)

Weekly checks:

• Query performance (< 30 seconds target)
• Cost trends (watch for spikes)
• Data freshness (pipelines ran on schedule)
• User adoption (dashboards being used)

Monthly optimization:

• Add missing indexes/clustering keys
• Archive old data
• Refactor slow queries
• Update documentation

How to Design and Deploy a Scalable Data Warehouse Architecture

Key Takeaways

✅ Modern data warehouse architecture separates storage from compute, enabling independent scaling and cost efficiency.

✅ Cloud-native platforms (Snowflake, BigQuery, Redshift) reduce operational overhead by 70% compared to on-premises systems.

✅ Three-tier architecture (source → staging → analytics) is the proven pattern for enterprise data warehouses.

✅ Design for 10x data growth from day one using partitioning, clustering, and tiered storage.

✅ ELT (load first, transform in warehouse) is faster and cheaper than traditional ETL approaches.

✅ Isolate workloads with separate compute clusters to prevent ETL jobs from impacting dashboards.

✅ Monitor costs obsessively—cloud’s flexibility is its greatest cost trap if unmanaged.

Next Steps

This week:

1. ✓ Define your architecture requirements (cloud-native, hybrid, on-premises?)
2. ✓ Select your platform (Snowflake, BigQuery, or Redshift?)
3. ✓ Map your data sources and key business metrics

Next week:

1. ✓ Provision your first cloud resources
2. ✓ Set up a test data pipeline
3. ✓ Create your initial data model

Next month:

1. ✓ Deploy your first production warehouse
2. ✓ Build initial dashboards and monitor performance
3. ✓ Optimize queries and costs

Resources & Tools

Official Platforms:

• Snowflake Documentation – Comprehensive guides and API reference
• Google BigQuery Docs – Getting started, best practices
• AWS Redshift Documentation – Architecture guides, tutorials

Data Pipeline Tools:

• dbt (data build tool) – SQL transformation framework
• Apache Airflow – Workflow orchestration
• Fivetran – Pre-built data connectors

BI & Analytics Tools:

• Tableau – Interactive dashboards
• Looker – Embedded analytics
• Power BI – Microsoft ecosystem

Learning Resources:

• Modern Data Stack courses (Coursera, DataCamp)
• YouTube channels: Seattle Data Guy, Zach Wilson Data
• Communities: r/dataengineering, Analytics Engineering Slack

About StartupMandi

StartupMandi empowers Indian entrepreneurs, data teams, and technology leaders with cutting-edge insights on data infrastructure, cloud architecture, and modern analytics platforms. Our mission is to demystify complex technical decisions and help organizations build data-driven competitive advantages.

Explore our resources:

• StartupMandi Technology Blog – Latest in data engineering and cloud infrastructure
• Data Engineering Resources – Tools, benchmarks, architecture patterns
• Startup Analytics Guide – Data strategy for early-stage startups

References

Accel Data. (2024). Why Modern Data Warehouses Matter Today. Retrieved from https://www.acceldata.io/blog/modern-data-warehouse​

Journal of World Advanced Research and Reviews. (2025). The Evolution of Data Warehouse Architectures: From On-Premises to Cloud-Native Solutions. Retrieved from https://journalwjarr.com​

DataCamp. (2025). Data Warehouse Architecture: Complete Guide. Retrieved from https://www.datacamp.com/blog/data-warehouse-architecture​

Hevo Data. (2025). Snowflake vs Redshift vs BigQuery: 16 Critical Differences. Retrieved from https://hevodata.com/learn/snowflake-vs-redshift-vs-bigquery/​

Google Cloud. (2024). BigQuery Official Documentation. Retrieved from https://cloud.google.com/bigquery/docs​
